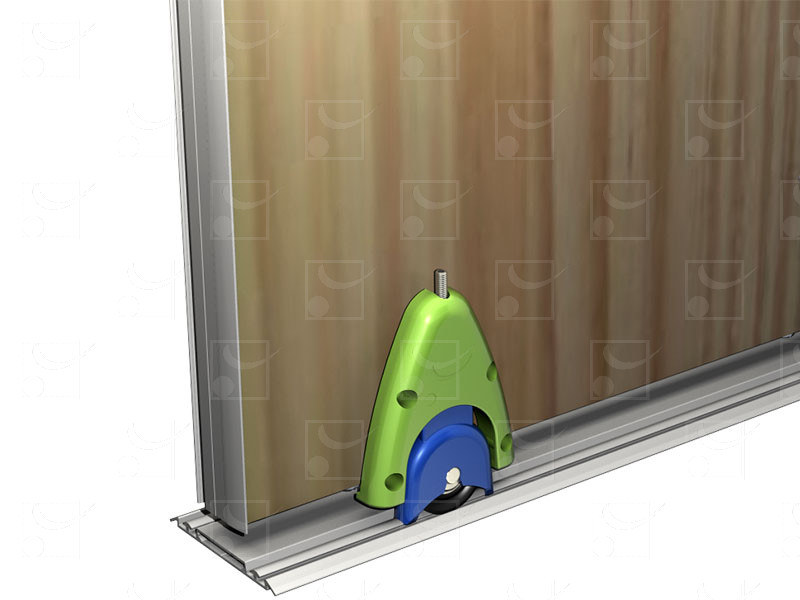

PICOSTAR 18

Capacity/Door: 55 kg
Track: Aluminium
Movement: Straight
Panel thickness: 18 mm

The PICO STAR range fits up your closet and wardrobe doors with an elegant design.

DESIGN: Reversible upper track one curved face allowing the fitting of adhesive sticker bands for wood colour imitation 2 types of handle profile : - 1 rounded shape - 1 angular shape allowing fitting of adhesive sticker decorative bands for wood imitatio
INGENIOUS: A single profile suits to panel 18 mm thickness.
SAFETY: Run off proof system fitted on the rollers.

Damper

Réf : 66AFP3
- Damper system allowing for soft closing of doors. Thanks to a catch pin fixed on the panel, the damper automatically travels to the closed position along with the door. Packaged in PET tube.
Ver el producto
Fixing kit

Réf : 66KSP
- Fixing kit for attic enables an easy horizontal fixing of the upper track. For a 17 to 59° roof pitch.
Ver el producto

Dustproof brush

Réf : 63A5/1200
- Adhesive dustproof brush, short bristles (5 mm) - in lengths of 12 m - to put on the handle (shock absorber)
Ver el producto
Dustproof brush

Réf : 63A15/1200
- Adhesive dustproof brush, short bristles (15 mm) - in lengths of 12 m - to put on the panel for the watertightness between the 2 doors
Ver el producto
Dustproof brush

Réf : 63A20/1200
- Adhesive dustproof brush, short bristles (20 mm) - in lengths of 12 m - to put on the panel for the watertightness between the 2 doors
Ver el producto
Dustproof brush

Réf : 63A25/1200
- Adhesive dustproof brush, short bristles (20 mm) - in lengths of 12 m - to put on the panel for the watertightness between the 2 doors
Ver el producto

Handle 18mm

Réf : 71E18/280A
- Anodised aluminium 18 mm handle - 2.8 m long - packaged in PET tube
Ver el producto
Handle 18mm

Réf : 71E18/280B
- Lacquered white handle 18 mm (RAL 9016) - 2.8 m long - packaged in PET tube
Ver el producto
Handle 18mm

Réf : 71H18/280A
- Anodised aluminium 19 mm handle - 2.8 m long
Ver el producto
Handle 18mm

Réf : 71H18/280B
- Anodised aluminium 19 mm handle lacquered white handle (RAL 9016) - 2.8 m long
Ver el producto

Set of tracks

Réf : 70/600A
- Set of aluminium tracks, anodized aluminium - L = 6 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track)
Ver el producto
Set of tracks

Réf : 70/600B
- Set of aluminium tracks, bronze colour - L = 6 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track)
